Solar inverters convert DC electricity from solar panels into AC electricity for home use. The three main types are string inverters (cost-effective, ideal for unshaded roofs), microinverters (best for complex roofs with shading, 5-25% higher efficiency), and hybrid inverters (integrate battery storage for energy independence). String inverters cost the least upfront but underperform in shade. Microinverters optimize each panel independently, costing more initially but yielding better returns in challenging conditions. Hybrid inverters, the most expensive option, manage both solar generation and battery storage, making them ideal for backup power needs and areas with unreliable grids.
A solar inverter is a device that converts direct current (DC) electricity from solar panels into alternating current (AC) electricity used by homes and businesses. This conversion is essential because solar panels generate DC power, but standard appliances and the electrical grid operate on AC power. Without an inverter, solar-generated electricity cannot power household devices or feed into the grid.
Solar inverters come in three main types: string inverters, microinverters, and hybrid inverters. Each type offers different efficiency levels, costs, and suitability depending on roof design, shading conditions, and whether battery storage is needed. The inverter choice significantly impacts system performance, with efficiency ratings typically ranging from 95-98% for string inverters, while microinverters can boost total output by 5-25% in shaded or complex installations.
Choosing an appropriate solar inverter goes beyond simple technical specifications; it represents a strategic investment decision. The correct inverter optimizes energy collection, maximizes operational efficiency, and can streamline both installation and maintenance processes. Conversely, an unsuitable inverter may lead to energy losses, decreased system longevity, or complications with future system expansions.
This guide examines three primary solar inverter categories, analyzing their distinct advantages and limitations, and provides guidance on selecting the optimal inverter for specific solar energy needs.
When researching optimal solar inverter solutions for residential or commercial systems, three main categories dominate the market: string inverters, microinverters, and hybrid inverters. Each category features unique design principles, benefits, and ideal applications. Understanding these distinctions proves crucial for optimizing system performance and cost-effectiveness.
The following sections examine how each solar inverter type operates and identify scenarios where each option excels.

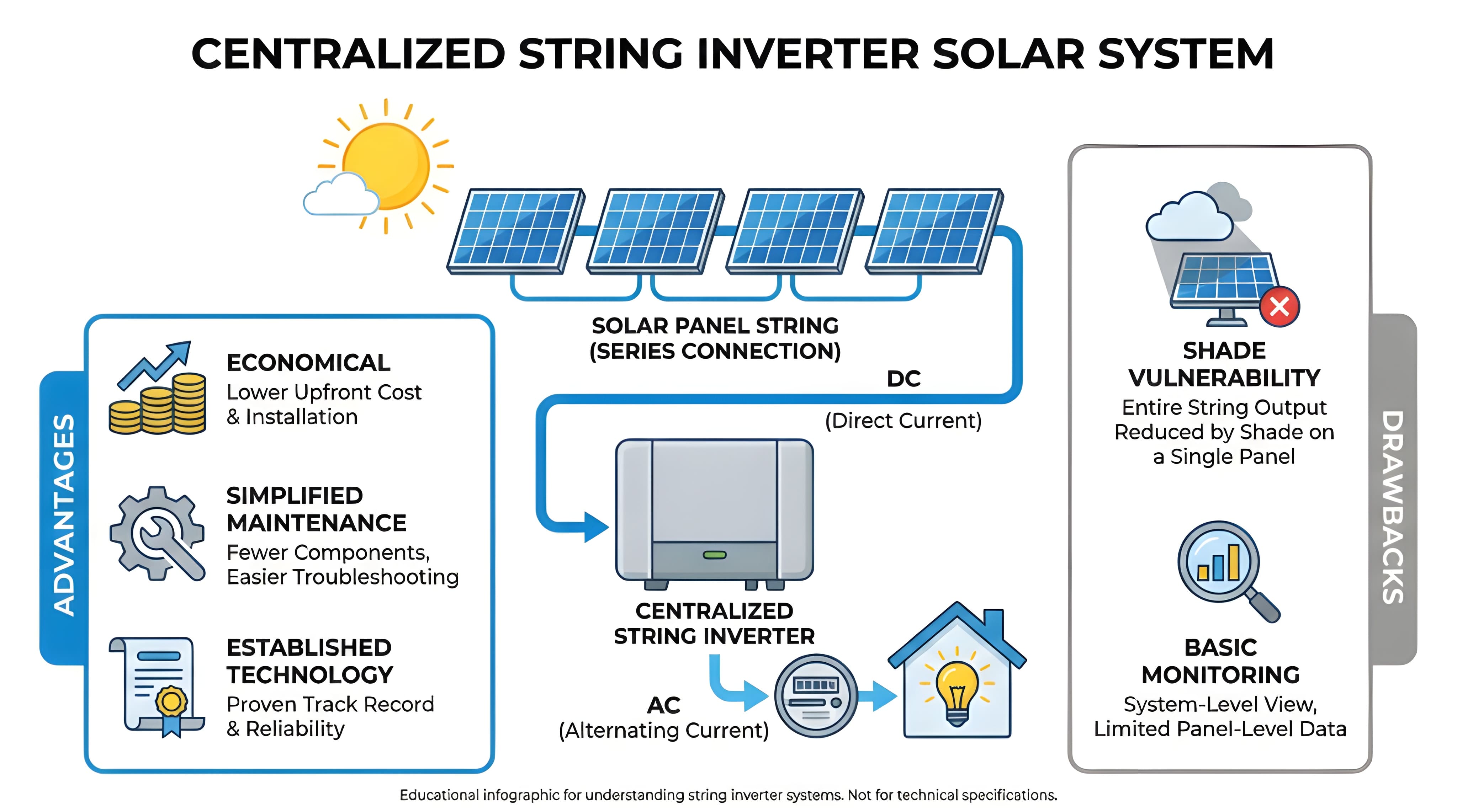

String inverters represent the most prevalent solar inverter type and have served as the industry standard for decades. These units are recognized for their simplicity, dependability, and cost-effectiveness.
String inverters operate by connecting multiple solar panels in series, creating a configuration called a "string." The direct current (DC) electricity generated by each panel travels through this string and gets converted into alternating current (AC) electricity by a single, centralized inverter unit.
Economical Solution: Installing only one inverter per system results in significantly lower upfront costs compared to alternative options.
Simplified Maintenance: Having a single conversion point makes diagnosing and servicing issues faster and more straightforward for solar professionals.
Established Technology: These systems enjoy widespread adoption and comprehensive understanding throughout the solar industry, as detailed in solar design documentation.
Shade Vulnerability: The entire string's performance depends on the least productive panel. When one panel experiences shading, dirt accumulation, or underperformance, it reduces output for the complete system.
Basic Monitoring: Most string inverters provide only system-level monitoring, preventing visibility into individual panel performance.
String inverters work best for installations on simple, unshaded rooftops where all panels face identical directions. These systems are popular choices for residential properties featuring clear solar exposure and consistent sunlight patterns.

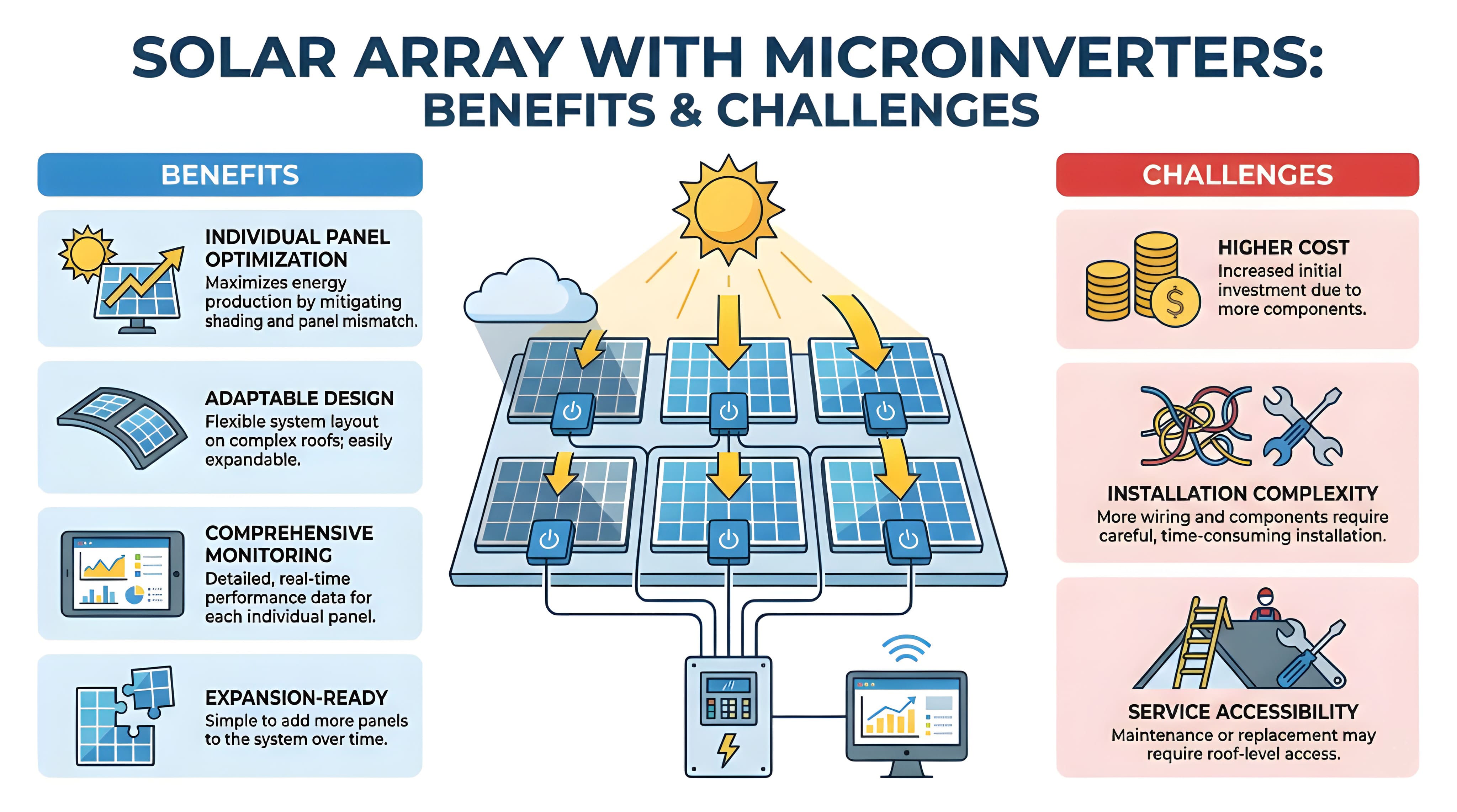

Microinverters provide a contemporary and highly efficient approach to solar energy conversion. Rather than utilizing a single central inverter, microinverters are compact devices installed directly on each solar panel. Each unit converts DC to AC independently, creating a more resilient and adaptive system.
Individual Panel Optimization: Each panel having its own inverter means that issues affecting one panel, such as shading or dirt, will not impact the performance of other panels.
Adaptable Design: These inverters excel on rooftops featuring multiple angles, chimneys, vents, or partial shading. Panels can be installed in various orientations without sacrificing efficiency.
Comprehensive Monitoring: Panel-level performance data provides real-time insights, proving valuable for diagnostics and maximizing energy output.
Expansion-Ready: System expansion becomes simpler over time since each additional panel includes its own inverter.
Increased Initial Investment: Multiple inverters translate to higher hardware and installation expenses.
Installation Complexity: Each panel requires individual setup, potentially increasing labor time and associated costs.
Service Accessibility: When a microinverter fails, accessing it may necessitate solar panel removal, adding maintenance complexity.
Microinverters serve as the preferred solution for roofs with complicated layouts, partial shading conditions, or when maximizing energy yield and obtaining individual panel performance insights are priorities. These systems particularly suit urban homes and solar projects where extracting maximum output from every panel matters.
Hybrid inverters are experiencing rapid growth in popularity within the renewable energy sector, particularly as battery storage becomes more common in solar installations. These inverters combine two technologies: a conventional solar inverter for converting panel-generated DC electricity into AC, and a battery inverter to manage energy storage systems.
Dual-Purpose Functionality: These units manage both solar panel output and battery charging and discharging cycles. This integration eliminates the requirement for two separate inverters, streamlining the energy system.
Enhanced Energy Autonomy: By storing surplus solar energy for use during nighttime hours or grid outages, hybrid inverters enable greater self-sufficiency and reliability.
Intelligent Power Management: Many hybrid models include advanced energy control features that optimize when to draw power from solar panels, batteries, or the electrical grid.
Unified System: A single device handles both solar generation and storage management functions.
Long-Term Economic Benefits: Although initial costs run higher, long-term savings can be significant, especially in regions with time-of-use electricity pricing structures.
Future-Oriented Design: Hybrid inverters represent an excellent choice for those planning immediate or eventual battery installation.
System Complexity: Installing a hybrid system demands more extensive planning, particularly when integrating with existing grid connections and battery banks.
Higher Upfront Cost: These inverters typically carry higher initial price tags than string or microinverters.
Hybrid inverters suit homeowners interested in energy independence, resilience during power outages, and maximizing self-generated solar energy utilization. These systems also make smart choices in regions experiencing unreliable grid service or elevated electricity costs.

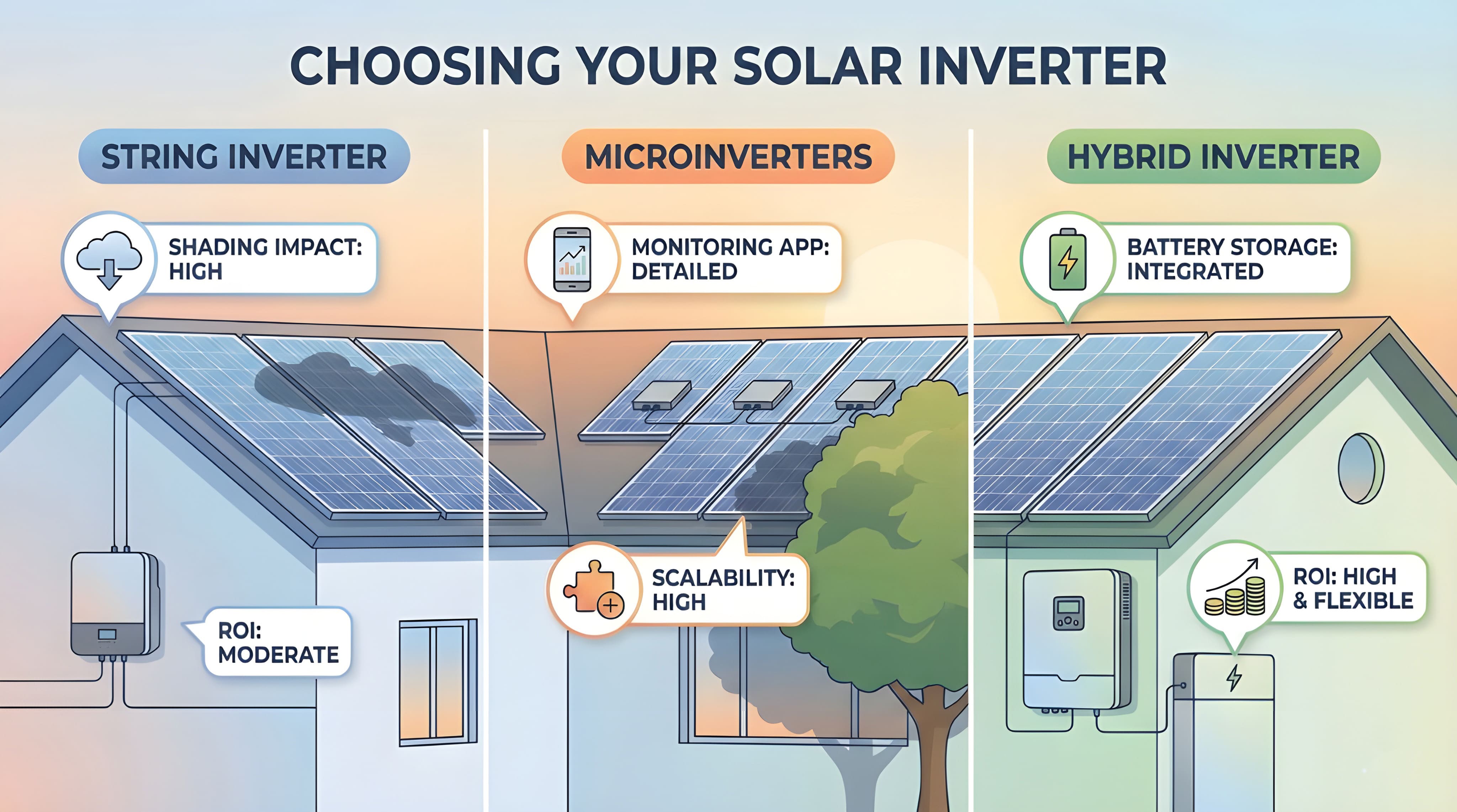

Each solar inverter type serves distinct purposes, with no universal "best" option existing. The optimal choice depends on individual circumstances. Whether the priority involves minimizing upfront expenses, optimizing performance under challenging conditions, or preparing the energy system for battery storage integration, understanding the characteristics of string inverters, microinverters, and hybrid inverters remains essential.
Selecting among different solar inverter types requires finding the right balance between performance, cost, and long-term value. This section compares string inverters, microinverters, and hybrid inverters across several key dimensions to assist in evaluating what works best for specific solar projects.
Solar inverter performance encompasses more than raw conversion efficiency. Environmental challenges such as shading, orientation differences, and panel degradation over time also require consideration.
String Inverters typically achieve high conversion efficiency (approximately 95 to 98 percent), but their performance can suffer when one or more panels in the string underperform. Since all panels connect in series, a shaded or malfunctioning panel reduces output for the entire array, similar to how one dead bulb affects an entire string of holiday lights.
Microinverters excel in complex conditions. Each panel operates independently with its own Maximum Power Point Tracking (MPPT), allowing the system to maintain optimal performance even when some panels experience shading or soiling. This often produces a net energy gain of 5 to 25 percent over string inverters in real-world conditions, particularly on rooftops with uneven sunlight exposure, as documented in NREL research.
Hybrid Inverters generally match string inverters in conversion efficiency while adding battery management capabilities. Their performance advantage lies in energy optimization, storing excess solar power during daylight hours and deploying it during nighttime or peak-rate periods. When combined with smart monitoring, these systems ensure maximum energy utilization.
Installation and ongoing maintenance significantly impact both project costs and long-term system reliability. Different solar inverter types present varying degrees of complexity.
String Inverters offer the most straightforward installation process. With a single central unit mounted near the electrical panel, installers only need to run wiring from the panel strings to the inverter. Maintenance simplifies because only one inverter requires troubleshooting or replacement. However, identifying issues at the panel level can prove challenging without advanced monitoring capabilities.
Microinverters require more extensive upfront labor. Each inverter mounts underneath or near a panel, meaning more components need installation and configuration. While this adds time and cost to installation, it simplifies long-term diagnostics. When one panel underperforms, the exact panel and reason become immediately apparent. However, accessing a faulty microinverter often involves returning to the roof and temporarily removing the panel, which can complicate service procedures.
Hybrid Inverters fall between the other two categories. These units centralize like string inverters but involve additional wiring and setup for battery connections. When installing a battery bank alongside the solar array, the hybrid setup can reduce the total device count. Maintenance proves more technical but remains manageable for trained professionals. Many systems offer remote monitoring capabilities, allowing minor issues to be spotted and addressed proactively.
Understanding cost implications for each solar inverter type proves essential when weighing short-term affordability against long-term returns.
String Inverters typically represent the most budget-friendly option. With fewer components and simpler installation requirements, they tend to have the lowest upfront costs. This makes them appealing for those looking to maximize return on investment in systems with consistent sunlight exposure and minimal shading.
Microinverters come at a premium price point. Installing one inverter per panel drives up both hardware and labor costs. However, this higher upfront expense can be offset by increased energy production in less-than-ideal conditions, leading to greater savings over time, particularly when roofs feature multiple orientations or experience frequent shading.
Hybrid Inverters rank as the most expensive among primary solar inverter types due to integrated battery compatibility. However, for homes with time-of-use billing or in areas experiencing frequent outages, the ability to store and control power independently can generate substantial long-term savings. Hybrid systems also provide enhanced value in future-proofing, as adding batteries later becomes considerably easier.
Roof design, sunlight exposure, and future plans play significant roles in determining which solar inverter type suits specific installations.
String Inverters work best for:
These inverters perform optimally in clean, unobstructed environments where all panels can work efficiently as a unified unit.
Microinverters prove ideal for:
These inverters offer flexibility to adapt to irregular layouts and changing conditions, maximizing available space utilization.
Hybrid Inverters suit:
Hybrid inverters bridge on-grid solar production and off-grid reliability, making them smart choices for those wanting energy flexibility and autonomy.
MPPT, or Maximum Power Point Tracking, represents sophisticated technology embedded in most modern solar inverters. This system continuously adjusts the electrical load on solar panels to identify the optimal point where they produce maximum power.
Without MPPT, solar panels might operate below optimal efficiency, especially under changing sunlight conditions caused by clouds, shading, or temperature fluctuations, as explained in comprehensive solar design manuals.
Traditional inverters convert DC to AC but lack the ability to dynamically optimize power output. MPPT inverters, by contrast, intelligently adjust voltage and current, ensuring systems extract every watt from solar panels.
By ensuring panels operate at their maximum power point, MPPT-equipped solar inverters can increase energy harvest by up to 30 percent, representing a significant advantage for solar system efficiency and return on investment.
With abundant information available and three distinct solar inverter types to consider, the selection process can feel overwhelming. However, finding the right solar inverter need not be complicated. Like any major investment, the decision comes down to understanding energy goals, the physical realities of the property, and required future flexibility.
This section explores key considerations before making a final decision and offers expert-backed insights to guide the selection process.
Choosing among different solar inverter types begins with asking appropriate questions. Solar professionals typically evaluate several factors when determining the best inverter for particular installations:
1. Roof Design And Shading
Roof layout and daily sunlight exposure represent major factors. For panels installed on simple, south-facing roofs without obstructions, a string inverter may prove more than sufficient.
However, for roofs with multiple pitches, different facing directions, or partial shading from trees, chimneys, or neighboring buildings, microinverters or hybrid inverters with optimization features work better. These types can handle variable performance more effectively by maximizing output at the individual panel level.
2. System Size And Scalability
For large systems or those with potential future expansion, consider inverter solution scalability. String inverters can support multiple strings, but adding panels later might require replacing the entire inverter. Microinverters offer modular design, simply requiring another panel with its own inverter for expansion. Hybrid inverters also offer expansion potential, especially when planning battery storage integration down the line.
3. Energy Usage Patterns
Peak electricity consumption timing matters. Households away during daytime hours that consume more power in evenings might benefit from hybrid inverters that store solar energy in batteries for later use. Conversely, when consumption matches daylight hours, standard string inverters may provide sufficient value.
4. Monitoring Preferences
For those who want to regularly check system performance and receive alerts when issues arise, microinverters and some advanced hybrid inverters offer panel-level monitoring through smartphone applications, providing detailed insights and faster troubleshooting.
5. Budget And Return On Investment
Upfront cost always requires consideration. String inverters cost the least to install, making them attractive for tight budgets. However, for less-than-ideal sites featuring shade or uneven layouts, microinverters or hybrid inverters may offer better returns over time by capturing more usable energy.
6. Grid Reliability And Backup Needs
For areas experiencing frequent outages, or when reducing grid reliance is desired, a hybrid inverter with battery integration represents a smart choice. This allows energy storage for use when needed most, without depending solely on utility power.
For those still uncertain about which path to take, solar professionals typically match each solar inverter type to specific real-world scenarios:
Best For:
Why Experts Recommend It:
String inverters offer tried-and-true reliability. They provide easy installation and cost-effective solutions. For ideal rooftops featuring no shading, good orientation, and consistent sunlight, there is no need for additional complexity.
Example Use Case:
A two-story suburban home with a south-facing roof and no nearby trees. The property owner seeks solid ROI with minimal maintenance requirements, as outlined in consumer solar guides.
Best For:
Why Experts Recommend It:
Microinverters help capture maximum wattage potential, even in less-than-perfect conditions. These systems prove ideal for extracting maximum efficiency from every panel and work especially well on roofs that do not face due south or have obstructions.
Example Use Case:
A city townhouse with limited roof space, part of which experiences morning shading. The owner wants to monitor each panel's output and maximize production year-round.
Best For:
Why Experts Recommend It:
Hybrid inverters provide control and flexibility. These smart, adaptable systems prove future-proof, especially when long-term plans include going partially or fully off-grid. With battery storage integrated into the system, users gain insulation from rising electricity rates and blackouts.
Example Use Case:
A rural home prone to grid outages. The property owner installs solar with a hybrid inverter and battery storage to ensure power availability even during utility failures.
Understanding solar inverter types proves essential to maximizing solar investment returns. From the cost-effective simplicity of string inverters to the panel-level optimization of microinverters and the energy storage capabilities of hybrid inverters, each type offers unique benefits. Consider roof conditions, energy goals, and budget to choose the best solar inverter for a greener, smarter future. For professional assistance with solar system design or to navigate permit requirements, consulting experienced solar professionals ensures optimal system performance and compliance.
1. What Type Of Inverter Is Best For Solar?
No one-size-fits-all answer exists for this question. The best solar inverter depends on specific conditions and goals, as detailed in Maryland's consumer guide.
Consulting a licensed solar installer is the best way to determine which solar inverter type suits specific properties. Solar Permit Solutions can help assess system requirements and equipment specifications.
2. What Are The Three Main Types Of Inverters?
The three most common solar inverter types used in residential and commercial systems are:
Each type serves different roles depending on setup, scale, and solar energy strategy, as documented in solar basics literature.
3. Are Microinverters Better Than String Inverters?
Microinverters offer clear advantages, especially in installations where conditions vary panel by panel, such as roofs with multiple orientations or shading. Because each panel operates independently, microinverters can boost total system output by as much as 25 percent in challenging conditions.
However, string inverters often prove more cost-effective and simpler to maintain, particularly for straightforward, shade-free installations. Therefore, "better" depends on the context. In many cases, the difference comes down to performance optimization versus upfront cost. Understanding common permit mistakes can also help optimize system design decisions.
4. What Is An MPPT Solar Inverter?
An MPPT (Maximum Power Point Tracking) solar inverter is a device that automatically adjusts voltage and current to ensure solar panels operate at their most efficient point. This technology is built into most modern solar inverters, especially string, micro, and hybrid models, as explained in photovoltaic system design documentation.
MPPT helps maximize energy harvest throughout the day, even as sunlight intensity changes due to clouds or shifting angles, by constantly "tracking" the optimal power point of the panels.
5. How Do Hybrid Inverters Work With Battery Storage?
Hybrid inverters integrate both solar and battery functionality into one seamless unit. During daylight hours, the inverter directs solar electricity to power the property, charge batteries, or send excess energy to the grid. At night or when the grid goes down, it pulls stored energy from the battery to keep appliances running.
This smart control makes hybrid inverters the backbone of energy-independent homes and microgrid-ready systems. For more information on system integration, explore NREL documentation or review state-specific regulations.
6. Can Different Inverter Types Be Mixed In One Solar System?
In most cases, mixing different solar inverter types within a single system is not recommended due to compatibility and control issues. Mixing string and microinverters, for example, can create imbalance and inefficiencies.
However, in very large or multi-roof systems, professionals sometimes design separate subsystems using different inverters for distinct zones. For those considering a hybrid approach, consulting a qualified solar engineer or contacting professionals for a custom solution is advisable.
7. What Maintenance Is Required For String Versus Microinverters?
String inverters typically have one central unit, making inspections and replacements more straightforward. However, system-level monitoring can make pinpointing issues more difficult.
Microinverters are distributed across each panel, which means diagnosing problems becomes easier with panel-level data. However, accessing a faulty microinverter may require removing the panel it is attached to, adding time and cost to maintenance.
Both solar inverter types are built to last 10 to 25 years with minimal maintenance, but periodic system checks are always recommended. Understanding permit processing procedures can also streamline system maintenance planning.
8. Are Microinverters Suitable For Large Commercial Systems?
While microinverters are more commonly used in residential setups, they can be applied to commercial projects, especially those with complex rooftops or challenging light conditions.
However, the higher unit cost and increased number of components make them less economically viable for very large installations compared to string inverters or central inverters designed specifically for utility-scale systems, as discussed in advanced research.
9. How Do Shading And Panel Orientation Affect Inverter Choice?
Shading represents one of the biggest factors when selecting among different solar inverter types. In shaded environments, string inverters will underperform because the weakest panel drags down the entire string's output.
In contrast, microinverters and power optimizers allow each panel to work independently, minimizing the impact of partial shading or varied tilt and azimuth angles.
For roofs with obstructions or facing multiple directions, opting for microinverters or a hybrid solution maximizes energy harvest. Review permit requirements nationwide to ensure compliance with local regulations.
10. What Is The Average Lifespan Of Different Solar Inverter Types?
Typical lifespan expectations include:
Regular monitoring and maintenance help ensure any solar inverter type performs optimally throughout its life cycle. Understanding HOA solar regulations can also affect installation planning and solar permitting guides.
