Rooftop solar panel installation requires three critical structural engineering steps: (1) assessing current roof load capacity through professional evaluation of framing elements, (2) selecting appropriate mounting systems (ballasted, fully attached, or hybrid) based on capacity findings, and (3) verifying structural compatibility or implementing reinforcement methods like load redistribution, component replacement, or member strengthening when needed.
Installing solar panels on your roof isn't just about placing equipment on top of your building, it's a complex engineering process that determines project feasibility, system size, and overall installation costs. Structural engineering, though representing a small portion of the total solar project scope, serves as the critical foundation that can make or break your installation.
Key considerations include:
Modern building codes introduced in 2015 and 2018 now mandate specific requirements for roof-mounted photovoltaic systems, including treating solar panels as dead load and incorporating wind and snow loads into design calculations. This represents a significant shift from pre-2015 standards when no specific guidance existed for solar panel tilt and structural load design.
Whether you're a homeowner considering residential solar design, a commercial property owner evaluating commercial solar installations, or a contractor planning a solar project, understanding these structural engineering fundamentals helps ensure safe, code-compliant, and cost-effective installations. This comprehensive guide walks you through the entire structural assessment process, roof reinforcement methods, and current building code requirements that govern rooftop solar installations. For additional resources and guidance, explore our comprehensive blog library covering various aspects of solar permitting and design.

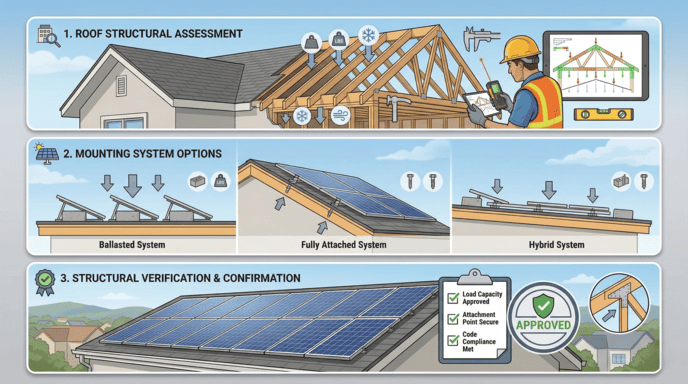

Any roof-mounted solar installation requires three essential steps to confirm structural feasibility. Let's examine each phase thoroughly.
This initial phase involves analyzing and evaluating all roofing structural components to establish their weight-bearing limits. New and pre-existing roof frameworks must possess adequate capacity to safely handle the extra load from solar panel installation. For projects in their early planning stages, the additional photovoltaic system weight can be factored into the design. The situation becomes more complex with existing structures. Comprehensive details about roof structural components must be accessible for precise capacity evaluation. Original structural blueprints of the building typically contain this critical information. When these documents aren't available, conducting a structural site assessment becomes necessary to collect essential data and develop structural plans. Typically, site inspections involve measuring structural components and evaluating their condition through visual examination. Occasionally, additional laboratory analysis, such as material testing to determine steel specifications, may be necessary for enhanced accuracy.
This decision typically flows from the initial assessment results, as different solar configurations carry varying weights. Racking suppliers can modify solar system specifications based on the recommended additional capacity determined in the first phase. Understanding the equipment requirements and specifications is crucial for proper mounting system selection.
This requirement is automatically satisfied when initial assessment results confirm that roofing structural components possess sufficient capacity for the solar configuration selected in phase two. The process becomes complex when structural components in their present state cannot support even the lightest available solar system. An additional phase involving roof component reinforcement becomes necessary to revive the solar project. According to the Department of Energy's permitting and inspection guidelines, proper verification ensures long-term structural integrity.

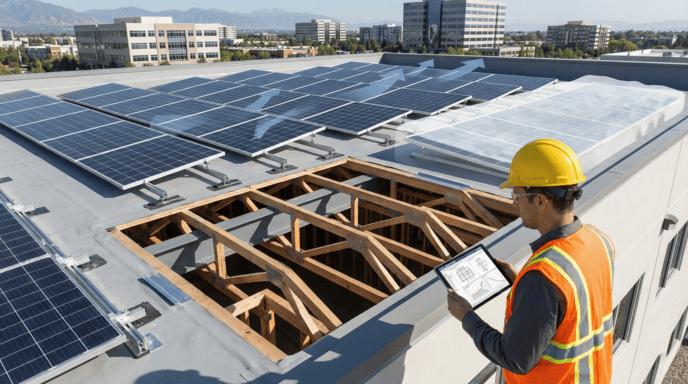

Three fundamental approaches exist for strengthening structural components to boost load-bearing capacity:
This technique involves transferring loads from weaker components to more robust ones. Implementing load redistribution typically requires installing additional components capable of safely channeling loads to stronger structural members. Understanding planning and zoning considerations for solar energy systems helps ensure compliance with local regulations during structural modifications.
New components can be integrated into existing roof systems by substituting some current members with higher-capacity alternatives. This approach presents numerous challenges including construction complications (since architectural features are already in place), elevated labor expenses, and potential project timeline delays. Professional solar design and permitting services can help evaluate the most cost-effective reinforcement approach for your specific situation.
This roof framework reinforcement approach is often considered optimal due to lower costs, faster implementation, and easier construction. Reinforcement involves adding supplementary members to original components to handle the additional stress from solar system component weight. Existing structural members must be in satisfactory condition for this strengthening technique to work effectively.
Nearly all states have adopted the International Building Code (IBC) and International Residential Code (IRC) with regional modifications. IBC editions from 2015 and 2018 include dedicated sections addressing roof design incorporating PV panels. Notably, before 2015, no specific guidelines existed for roof-mounted panel loading standards. The updated requirements introduced more complex loading considerations that roofs supporting PV panels must satisfy. Understanding permitting and inspection timelines can help project planners account for these code compliance requirements. The 2015 IBC and 2015 IRC specify the following:
"1603.1.8.1 Photovoltaic panel systems. The dead load of rooftop-mounted photovoltaic system, including rack support systems, shall be indicated on the construction documents."
"16.12.5.2 Where applicable, snow drift loads created by photovoltaic panels or modules shall be included."
"R324.4.1 Roof live load. Roof structures that provide support for photovoltaic panel systems shall be designed for applicable roof live load"
"R907.2 Wind Resistance. Rooftop-mounted photovoltaic panel or modules systems shall be installed to resist the component and cladding loads specified in Table R401.2(2)."
These provisions indicate that both snow and wind loads must now be incorporated into load calculations. State-specific resources, such as the New York solar guidebook, California solar permit requirements, and Texas solar permits guide, provide additional clarity on regional compliance standards. For larger-scale projects, resources on land use permitting processes and ordinance considerations for grid-scale solar development offer valuable guidance.
ASCE represents another primary code structural engineers reference for determining applicable loads. IBC 2018 incorporates ASCE 2016 for establishing loading conditions. The current ASCE version (2016) now mandates treating PV panels as dead load. This requirement can create significant complexity when calculating total system weight, particularly in high seismic zones. Additionally, live load considerations on the roof may be waived when panels are positioned at specified distances and heights. These requirements are relatively recent and have created ambiguity for design professionals. Engineering consulting firms with access to experienced structural engineers can deliver cost-effective and flawless designs for PV panel installation on any building roof. A qualified structural engineer thoroughly familiar with current building codes and solar permitting requirements can identify and address these requirements before construction begins, streamline the design workflow, and reduce overall solar project costs. Communities can also benefit from comprehensive solar planning toolkits when evaluating rooftop solar projects at scale.
Structural engineering remains a cornerstone consideration for successful rooftop solar installations. Understanding the three-step evaluation process, assessing current roof capacity, selecting appropriate mounting systems, and verifying structural compatibility, ensures projects proceed safely and cost-effectively. When existing structures fall short of requirements, modern reinforcement techniques offer viable solutions through load redistribution, component replacement, or member strengthening. As building codes continue to evolve, particularly with the 2015 and 2018 IBC updates introducing specific PV panel requirements, working with knowledgeable structural engineers becomes increasingly important.
Proper structural analysis not only guarantees compliance with current standards but also optimizes system design, minimizes unnecessary expenses, and prevents costly delays. Whether you're planning a residential or commercial rooftop solar project, investing time and resources in thorough structural evaluation upfront will pay dividends throughout the installation process and the system's operational lifetime. For more information about structural requirements and solar permit application steps, contact our team of experienced professionals.
How do I know if my roof can support solar panels?
A professional structural assessment is the most reliable way to determine if your roof can support solar panels. This evaluation examines your roof's structural components, including beams, joists, and decking, to calculate their load-bearing capacity. The engineer will review original building plans when available or conduct a site survey to measure and assess the condition of structural elements. Factors considered include the age of your roof, current condition, existing load capacity, and the additional weight from the proposed solar system including panels, racking, and mounting hardware. Resources from organizations like the Solar Energy Industries Association can help you understand industry best practices for structural assessments.
What's the difference between ballasted and fully attached solar mounting systems?
Ballasted mounting systems use weighted blocks or trays to hold solar panels in place without penetrating the roof membrane, making them ideal for flat or low-slope roofs with adequate load capacity. Fully attached systems use anchors or bolts that penetrate through the roofing material and attach directly to the structural framework below, distributing weight more effectively but requiring proper waterproofing. Hybrid systems combine both approaches, using some attachments along with ballast to optimize weight distribution. The choice depends on your roof's load capacity, slope, wind exposure, and local building code requirements. Avoiding common solar permit mistakes includes selecting the appropriate mounting system for your specific roof structure.
What happens if my roof structure can't support solar panels in its current condition?
If your roof lacks sufficient capacity for solar panels, you have several reinforcement options. Load redistribution transfers weight from weaker structural members to stronger ones by adding support elements. Replacing existing structural components with higher-capacity alternatives is another solution, though it's typically more expensive and time-consuming. The most common and cost-effective approach involves reinforcing existing members by adding supplementary structural components to handle the additional load. A structural engineer will recommend the most appropriate and economical solution based on your specific situation and roof condition. For properties considering alternative solutions, off-grid solar system design may offer flexibility in system placement and structural requirements.
Why do current building codes treat solar panels differently than they did before 2015?
Before 2015, building codes lacked specific guidance for roof-mounted solar panel loading requirements, creating inconsistencies in design approaches. The 2015 and 2018 IBC editions introduced dedicated sections addressing PV panel installation, requiring engineers to account for solar panels as dead load and incorporate both snow drift and wind resistance factors into calculations. ASCE 2016 further refined these requirements, particularly important in high seismic regions. These updates ensure safer, more standardized solar installations but also increase design complexity, making it essential to work with engineers familiar with current code provisions. Understanding solar permit requirements across the United States helps navigate these evolving standards. The NREL's comprehensive guidance on solar development provides additional context on these regulatory changes.
How much does structural engineering typically add to the cost of a solar project?
While structural engineering represents an additional upfront expense, it typically accounts for a relatively small percentage of the total project cost, usually between 2-5% for straightforward projects. However, this investment prevents potentially expensive problems including installation delays, code violations, structural damage, or system failure. In cases requiring roof reinforcement, costs vary significantly based on the strengthening method needed and the extent of work required. Ultimately, proper structural analysis often reduces overall project costs by optimizing system design, preventing over-engineering, and ensuring the most economical mounting solution for your specific roof structure. Streamlining your solar permit processing can help minimize delays and reduce overall project expenses. Visit Solar Permit Solutions to learn more about our comprehensive solar design and permitting services.
