Article 690 Updates For Installers: NEC 2023 Solar Code Requirements

Article 690 Revisions in the 2023 NEC

The 2023 NEC solar code delivers substantial updates to Article 690, with critical modifications in Sections 690.1 (Scope) and 690.2 (Definitions). These core revisions redefine how solar projects are categorized, documented, and enforced, directly affecting design workflows and permit submissions.

The most significant change involves removing and transferring multiple PV-specific definitions from Article 690 into Article 100. This shift unifies terminology throughout the entire code, making electrical definitions apply uniformly across all NEC sections beyond solar installations alone.

For solar designers and installers, this requires:

• Revising plan sets and documentation to match updated definition references
• Learning how Article 690 now cross-references Article 100
• Adapting to modified scope language that defines Article 690’s coverage boundaries
• Avoiding misinterpretation during AHJ plan reviews or on-site inspections

Why These 2023 NEC Revisions Drive Results

The 2023 NEC updates to Article 690 on PV systems target specific improvements: strengthening fire safety protocols, boosting system performance and efficiency, tightening grounding and bonding standards, and advancing system monitoring and communication capabilities. These revisions make PV installations safer, more effective, and simpler to service, incorporating the latest technological progress and safety protocols within the solar sector.

Conductor Sizing and Overcurrent Protection: NEC Solar Code Updates

The 2023 NEC solar code delivers critical revisions to conductor sizing and overcurrent protection, addressing the elevated voltage and current loads in today’s residential, commercial, and utility-scale PV installations. These updates reshape NEC solar panel installation requirements, requiring installers to recalculate ampacity, temperature ratings, insulation standards, and derating factors to preserve system safety and functionality.

Updated NEC 2023 conductor sizing protocols change how you calculate voltage drop, implement grounding methods, and select overcurrent protection devices (OCPDs). Strategic conductor sizing now plays an even larger role in preventing thermal damage, minimizing fire hazards, and achieving NEC solar compliance benchmarks.

For expansive PV and battery storage projects, these revisions also affect string calculations, wire pathway design, and equipment positioning. Applying current NEC 2023 solar code standards helps installers maximize efficiency, eliminate inspection setbacks, and build systems that satisfy both AHJ standards and sustained performance targets.

PV Labeling & Definition Updates in NEC 690

The 2023 NEC solar code brings crucial terminology and definition modifications to Article 690 that transform design documentation and installation execution. The most notable revision occurs in NEC 690.7(A), replacing “PV output circuit” with “PV string circuit.”

This modification sharpens circuit identification accuracy and establishes uniformity across NEC 690 PV labeling, wiring protocols, and compliance records. It also synchronizes terminology with current PV system design and interconnection practices.

For solar installers and designers, this demands:

• Revising plan sets and line diagrams to incorporate “PV string circuit”
• Matching labels to NEC 2023 terminology standards
• Eliminating outdated terms that trigger plan review rejections or inspection holdups
• Accelerating AHJ communication and approval processes

Precise and uniform PV string circuit labeling now serves as a cornerstone for satisfying NEC solar panel installation requirements, expediting permit workflows, and securing complete NEC 2023 solar compliance across residential and commercial deployments.

Rapid Shutdown and Labeling Standards in NEC Article 690.12

The 2023 NEC solar code revisions to Article 690.12(D) establish tighter rapid shutdown system (RSS) protocols for residential and commercial PV projects. These modifications concentrate on NEC solar labeling and system identification to enhance firefighter safety, streamline inspections, and unify compliance practices.

A central focus of the NEC 2023 update involves implementing clear, uniform, and highly visible rapid shutdown labeling. Labels must now satisfy stricter wording, positioning, and durability specifications to enable firefighters, inspectors, and maintenance crews to rapidly recognize shutdown capabilities during emergencies.

This requires:

• Applying standardized NEC 690.12-compliant RSS labels
• Confirming equipment satisfies “within array” and “outside array” shutdown protocols
• Guaranteeing labels resist weather exposure and remain permanently attached
• Updating plan sets and as-built drawings to reflect current label terminology
• Eliminating inspection delays and correction notices caused by incomplete or ambiguous RSS labels

Grounding and Bonding Standards for PV Systems in NEC Articles 690.43 & 250

The 2023 NEC solar code delivers essential revisions to grounding and bonding protocols in Article 250 and Article 690.43, strengthening safety and compliance benchmarks for residential, commercial, and utility-scale PV installations. These modifications prove particularly vital for expansive PV arrays operating at elevated voltage and amperage levels, where inadequate grounding generates severe fire and electrocution risks.

Current revisions supply comprehensive direction on grounding and bonding PV equipment to eliminate electrical faults, strengthen system dependability, and prevent inspection rejections. Article 690.43 now defines precise methods for bonding metallic components, mounting structures, and equipment housings, while guaranteeing accurate conductor calculations and continuity throughout the complete system.

This requires:

• Confirming equipment grounding conductors (EGCs) satisfy updated sizing protocols
• Guaranteeing effective bonding across all exposed metallic surfaces
• Selecting listed grounding/bonding components compatible with racking assemblies
• Preventing loose or unstable connections that generate inspection corrections
• Matching designs with AHJ requirements and NEC inspection protocols

Energy Storage System Commissioning Standards in NEC Article 706.7

The 2023 NEC solar code establishes updated and stricter commissioning protocols for energy storage systems (ESS) in Article 706.7(A). These revisions fundamentally transform how ESS must be tested, documented, and certified post-installation to guarantee safety and performance compliance.

Article 706.7 now defines precise commissioning workflows that installers must execute, including sequential requirements for:

• Functional testing
• Performance verification
• Safety validation
• System documentation and recordkeeping

For solar installers and ESS integrators, these revisions require:

• Formal commissioning procedures (simply energizing a battery system no longer suffices)
• Documented test outcomes that AHJs or utilities may request
• Commissioning confirmation that ESS operates within manufacturer specifications and NEC safety parameters
• Recognition that inadequate or partial commissioning delays PTO or triggers inspection failure

Arc-Fault Protection Standards in NEC 690.11

The 2023 NEC solar code brings significant revisions to arc-fault protection in Article 690.11, reinforcing requirements for arc-fault circuit interrupters (AFCIs) in PV installations. These modifications target reducing electrical fire hazards from damaged conductors, unstable connections, or deteriorated wiring (challenges that intensify as system voltages climb).

Updated NEC 690.11 standards now mandate enhanced AFCI technology, superior fault detection performance, and definitive criteria for recognizing and interrupting hazardous arc events. This strengthens overall system protection, reliability, and NEC solar code adherence.

These NEC 2023 revisions demand:

• Confirming inverters and combiners incorporate listed AFCI protection meeting current standards
• Guaranteeing appropriate wiring techniques and connection reliability
• Revising designs and equipment choices to align with Article 690.11
• Eliminating fire risks and inspection failures from inadequate arc-fault protection

Rooftop Cable Tray Standards in NEC 690.31

The 2023 NEC solar code establishes refined requirements for rooftop cable tray installations in Section 690.31(C)(2). These modifications deliver precise direction for safely routing and securing PV conductors on rooftops, particularly as installations expand in scale and complexity.

Revised NEC 690.31 cable tray protocols prevent overheating, mechanical damage, and long-term system degradation by standardizing cable tray sizing, installation, and support methods.

Critical NEC Solar Code Revisions

The updated NEC code for solar installation defines essential cable tray factors, including:

• Sizing: Guaranteeing sufficient capacity to avoid overheating and electrical breakdowns
• Placement: Positioning trays to reduce mechanical damage and environmental stress exposure
• Support Requirements: Strengthening structural stability and preventing sagging or displacement over time

Source Connection Standards in NEC 705.11: Splices and Taps

The 2023 NEC solar code implements stricter requirements for source connections to service equipment in Section 705.11, with targeted emphasis on splices and taps. These revisions directly reshape how solar installers must engineer and execute load-side and supply-side connections, elevating the importance of proper materials and installation techniques.

Updated NEC 705.11 direction defines how splices and taps must be executed to maintain mechanical strength, accurate conductor sizing, temperature rating compatibility, and electrical safety. Installers can no longer apply generic connection approaches (listed components and code-approved methods are now mandatory).

This update requires:

• Selecting listed splice and tap connectors rated for specific conductor types and ampacity levels
• Applying manufacturer torque specifications and installation protocols
• Confirming conductor sizing and insulation satisfy NEC 2023 standards
• Avoiding loose or inadequately supported connections that cause overheating or inspection failure
• Recording source connection specifications in PV plan sets and as-built documentation for AHJ examination

Floating Solar Standards in NEC 690.4(F) (Floatovoltaics)

The 2023 NEC solar code establishes requirements in Article 690.4(F) targeting the distinct challenges of floating solar installations (floatovoltaics). As PV system deployment expands across ponds, reservoirs, and water bodies, the NEC now defines specific safety and design protocols to guarantee code-compliant installations.

Floating PV systems differ from roof or ground-mounted arrays by experiencing continuous environmental motion, which impacts conductor insulation, grounding continuity, mechanical stress, and long-term system resilience. Water currents, wave forces, and elevated humidity levels escalate risks of abrasion, corrosion, and electrical malfunctions. Understanding solar radiation patterns helps optimize floatovoltaic system placement and performance.

To address these challenges, the 2023 NEC floatovoltaic standards deliver direction on:

• Conductor protection and insulation strategies
• Grounding and bonding techniques in wet conditions
• Mechanical support systems and movement accommodation
• Equipment listing specifications and environmental performance ratings

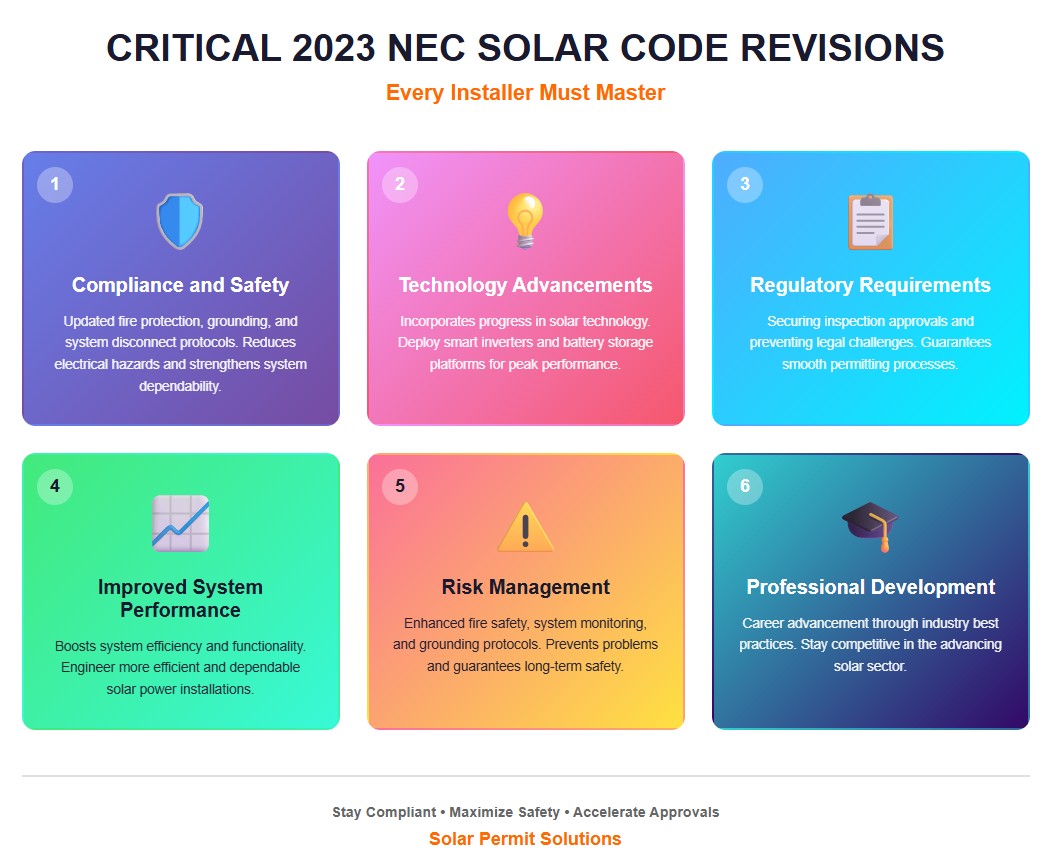

Critical 2023 NEC Solar Code Revisions Every Installer Should Master
‍

‍
‍Maintaining current knowledge of 2023 NEC solar code modifications proves essential for solar installers, electricians, and designers committed to achieving compliance, securing inspection approvals, and eliminating expensive rework. Current NEC revisions impact virtually every PV system component (from terminology and labeling protocols to rapid shutdown mechanisms, grounding practices, conductor calculations, energy storage requirements, and source connection standards).

1. Compliance and Safety: The 2023 NEC solar revisions implement updated fire protection, grounding, and system disconnect protocols. Applying these modifications guarantees installations satisfy current safety benchmarks, reducing electrical hazards and strengthening system dependability.

2. Technology Advancements: The 2023 NEC incorporates progress in solar technology and system engineering. Electricians must maintain current knowledge of these revisions to effectively deploy emerging technologies, including smart inverters and battery storage platforms, ensuring peak performance and compliance.

3. Regulatory Requirements: Satisfying NEC solar code standards proves necessary for securing inspection approvals and preventing legal challenges. Tracking current revisions guarantees smooth permitting processes and preserves professional reputation.

4. Improved System Performance: Code modifications frequently incorporate provisions that boost system efficiency and functionality. Implementing these revisions enables electricians to engineer and install more efficient and dependable solar power installations.

5. Risk Management: Updated requirements for fire safety, system monitoring, and grounding protocols help control and reduce risks connected with solar deployments. Understanding these modifications helps electricians prevent potential problems and guarantee long-term installation safety.

6. Professional Development: Maintaining awareness of NEC solar revisions supports career advancement, demonstrating dedication to industry best practices and keeping electricians competitive in the advancing solar sector.

Achieving NEC Solar Code Compliance for Accelerated Permitting

The 2023 NEC solar code revisions influence nearly every phase of a PV project (from system engineering and terminology to rapid shutdown protocols, grounding techniques, conductor sizing, source connections, and energy storage commissioning). Staying informed on these modifications remains essential to maintain compliance, strengthen safety, and eliminate costly redesigns or inspection setbacks.

Partnering with experts who understand NEC 2023 and AHJ requirements can significantly accelerate approval timelines. Whether you’re going solar with SDG&E or working with other utilities, proper code compliance streamlines the entire process.

Solar Permit Solutions delivers:

• NEC-compliant PV permit plan sets
• Engineering reviews and PE stamps
• Code-aligned design support
• Energy storage and interconnection expertise

Whether executing residential, commercial, or utility-scale projects, maintaining compliance with current NEC solar standards keeps your operations advancing and protects your profit margins. Understanding renewable energy incentives and proper end-of-life management for solar equipment further strengthens long-term project sustainability. For those interested in expanding their knowledge, essential solar energy books provide valuable technical guidance, and understanding solar metering requirements helps prepare for utility interconnection.

Conclusion

The 2023 NEC solar code represents a comprehensive evolution in photovoltaic system standards, directly impacting how installers design, document, and execute solar projects nationwide. From refined terminology in Article 690 to stricter rapid shutdown protocols, enhanced grounding requirements, and new energy storage commissioning procedures, these revisions demand immediate attention and implementation.

Mastering these NEC 2023 updates separates successful installations from projects plagued by inspection failures, costly redesigns, and permit delays. The transition from “PV output circuit” to “PV string circuit,” strengthened AFCI protection standards, updated cable tray specifications, and stricter source connection requirements in Article 705.11 collectively establish a higher baseline for system safety, performance, and regulatory compliance.

Installers who proactively align their workflows with these revisions gain competitive advantages: faster permit approvals, reduced inspection corrections, stronger AHJ relationships, and enhanced project profitability. Whether deploying residential rooftop systems, commercial installations, utility-scale arrays, or emerging floatovoltaic projects, compliance with NEC 2023 solar standards proves non-negotiable.

Solar Permit Solutions specializes in navigating these complex code requirements, delivering NEC-compliant permit plan sets, engineering reviews, PE stamps, and code-aligned design support that accelerates approvals and eliminates compliance obstacles. Staying ahead of NEC revisions protects your business, safeguards your installations, and positions you for sustained success in the evolving solar industry.
