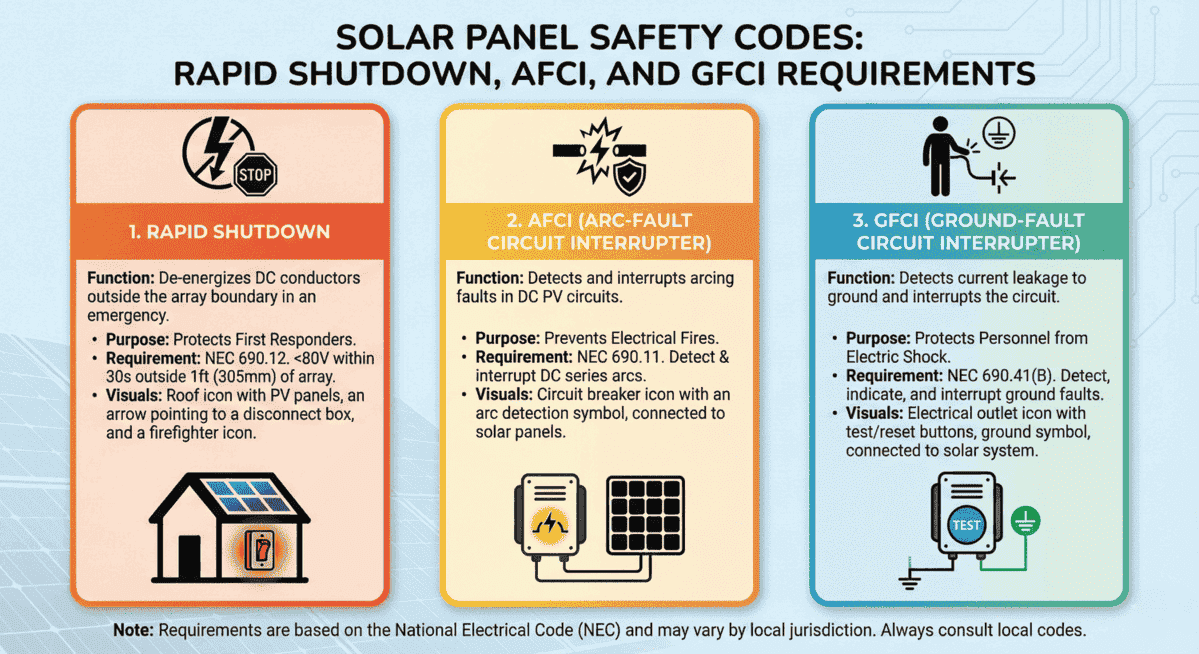

Solar panel safety codes require three critical protections: Rapid Shutdown (RSD), Arc-Fault Circuit Interrupters (AFCI), and Ground-Fault Circuit Interrupters (GFCI). Rapid Shutdown (NEC 690.12) reduces rooftop DC voltage to below 80 volts within array boundaries and below 30 volts outside within 30 seconds during emergencies, protecting firefighters from electrocution. AFCI protection (NEC 690.11) prevents electrical fires by detecting dangerous arc faults in systems operating at 80 volts DC or higher. GFCI/GFDI protection (NEC 690.41) stops electrical shock by interrupting current when leakage to ground is detected. These three systems work together - RSD protects emergency responders, AFCI prevents fires from internal arcing, and GFCI guards against shock hazards - creating comprehensive electrical safety for residential solar installations. All modern solar systems must integrate these protections to meet National Electrical Code standards and ensure decades of safe, reliable operation.
Rapid Shutdown serves as a vital safety mechanism that protects emergency responders. During crises like fires, it enables quick disconnection of high-voltage DC wiring across your rooftop.
Solar panels generate DC power whenever light hits them. Even when you flip off the main AC breaker, the wiring connecting your panels to the inverter stays energized with dangerous voltage levels. RSD exists to remove this electrocution risk for firefighters accessing your roof during emergencies. The National Electrical Code (NEC) section 690.12 requires this feature for nearly all rooftop setups. The system must lower conductor voltage to safe thresholds within seconds of activation, establishing a protected zone for emergency workers. Understanding solar permitting requirements is essential when implementing these safety features.
RSD systems contain two core components: an initiator and module-level power electronics (MLPE). The initiator takes the form of a dedicated switch or integrates with your main AC disconnect. Upon activation, it communicates with MLPEs - devices such as microinverters or power optimizers mounted on individual panels - triggering shutdown. This process must drop voltage below 80 volts within a specified boundary around the array and below 30 volts outside that zone, completing within 30 seconds. Module-level control delivers the most reliable method to de-energize your entire array at its origin point. Professional residential solar design services ensure proper RSD integration from the planning phase.
While RSD handles external emergency scenarios, Arc-Fault Circuit Interrupters (AFCI) operate continuously to stop fires from igniting inside your system.
Arc faults represent hazardous electrical discharges that jump across gaps - often from compromised wiring or loose terminals. These arcs produce extreme heat capable of reaching temperatures that ignite nearby materials and spark fires. AFCI technology identifies the distinct electrical patterns these dangerous arcs create. When detected, the AFCI unit immediately breaks the circuit, halting the arc before it intensifies. Mastering electrical fundamentals helps you understand how these protective devices function within your system.
Contemporary solar inverters come standard with built-in AFCI protection, meeting NEC 690.11 requirements for systems running at 80 volts DC or above. These advanced systems continuously scan DC wiring for arc-characteristic signals. Installation quality matters - tightening all connections and protecting wires from damage during setup prevents arc fault conditions and eliminates false trips caused by harmless electrical interference. Whether you're planning commercial solar design or a residential project, AFCI compliance is non-negotiable. The National Renewable Energy Laboratory provides extensive research on inverter safety technologies and best practices.
Your third protective layer, Ground-Fault Circuit Interruption (GFCI), concentrates on preventing electrical shock for anyone who contacts the system.
Ground faults emerge when electricity discovers an unplanned route to earth. In solar arrays, this happens if a live wire contacts a metal panel frame or mounting structure. This energizes normally safe components, generating severe shock danger. GFCI devices function by tracking current flow through hot and neutral wires. Upon detecting imbalance - indicating current escape to ground - it immediately cuts power. Understanding solar interconnection methods helps clarify where GFCI protection becomes critical in your system design.
Within solar PV systems, this safeguard appears as a Ground-Fault Detector/Interrupter (GFDI) built into the inverter. It executes the same job as conventional GFCI but operates on DC circuits. The GFDI acts as a fire-prevention tool rather than direct personnel shock protection like AC GFCI. System effectiveness depends on correctly installed equipment grounding conductor (EGC), creating a secure pathway for fault current, enabling GFDI fault detection and system shutdown. Those following a DIY solar installation guide must pay special attention to proper grounding techniques.

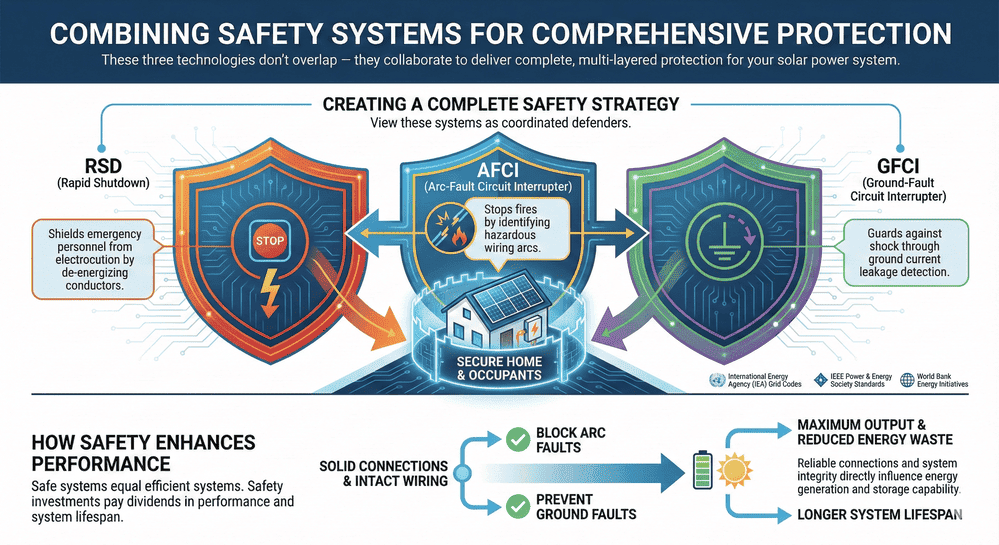

These three technologies don't overlap - they collaborate to deliver complete, multi-layered protection for your solar power system.
View these systems as coordinated defenders. RSD shields emergency personnel from electrocution. AFCI stops fires by identifying hazardous wiring arcs. GFCI guards against shock through ground current leakage detection. Combined, they neutralize the main electrical dangers linked to rooftop solar arrays, securing your home and its occupants. Research from the International Energy Agency on grid codes emphasizes the growing significance of system control and safety features as renewable energy expands. The IEEE Power & Energy Society also provides technical standards that inform these safety requirements.
Safe systems equal efficient systems. Solid connections and intact wiring - critical for blocking arc faults and ground faults - also reduce energy waste. Proper safety implementation forms the foundation for maximum output. As covered in comprehensive guides on solar storage performance, elements like reliable connections and system integrity directly influence energy generation and storage capability. Safety investments pay dividends in performance and system lifespan. Whether you're designing an off-grid solar system or a grid-tied installation, safety and efficiency go hand in hand. Supply-side connection configurations require particular attention to these safety protocols. The World Bank's energy initiatives demonstrate how proper safety infrastructure supports long-term renewable energy adoption globally.
Building a DIY solar installation requires more than technical knowledge - it demands a commitment to safety at every stage. Rapid Shutdown, AFCI, and GFCI protections aren't optional extras; they're fundamental safeguards that protect lives, prevent fires, and ensure your system operates reliably for years to come. By integrating these three safety layers, you create a rooftop solar array that meets NEC standards while delivering peace of mind alongside clean energy. Remember, cutting corners on safety equipment compromises both your investment and the well-being of your household and emergency responders. Take action now: verify your system includes all three protections, ensure proper installation, and regularly test these safety mechanisms. Understanding three-line diagrams helps visualize how these safety systems integrate into your complete electrical design. A truly successful solar installation balances energy production with uncompromising safety - because the best performing system is one that operates without risk. For assistance with solar permit expediting and ensuring code compliance, contact our team of certified professionals.
Is rapid shutdown required for all residential solar installations?
Rapid shutdown is mandatory for most rooftop solar installations under NEC 690.12. The requirement applies to PV systems installed on or in buildings. Ground-mounted systems located more than three feet from a building are typically exempt. Check your local jurisdiction's adopted NEC version, as enforcement may vary by location. If your panels are roof-mounted or building-integrated, plan to include RSD functionality through microinverters, power optimizers, or dedicated module-level shutdown devices. Learn more about how long solar permits take in your area. The American Solar Energy Society offers additional resources on regional code requirements.
How do I know if my solar inverter has AFCI protection?
Modern inverters manufactured after 2011 typically include integrated AFCI protection to comply with NEC 690.11 requirements. Check your inverter's specification sheet or label for "AFCI" certification markings. You can also consult the manufacturer's documentation or contact their technical support. If your system operates at 80 volts DC or higher (which most residential systems do), AFCI protection is required by code. During installation, verify the AFCI function tests properly according to manufacturer instructions. Green Building Advisor provides detailed reviews of inverter safety features.
What's the difference between GFCI and GFDI in solar systems?
GFCI (Ground-Fault Circuit Interrupter) protects AC circuits and is commonly found in household outlets near water sources. GFDI (Ground-Fault Detector/Interrupter) performs similar functions but is specifically designed for DC circuits in solar PV systems. The GFDI is integrated into your solar inverter and primarily serves as fire prevention by detecting current leakage to ground on the DC side. While both detect ground faults, GFDI operates differently because DC current behaves distinctly from AC current. Visit our blog for more technical comparisons.
Can I install rapid shutdown, AFCI, and GFCI protections myself?
While DIY solar installation is possible, implementing these safety systems requires electrical expertise and strict adherence to NEC codes. Rapid shutdown involves proper MLPE installation and initiator wiring. AFCI and GFDI typically come integrated into quality inverters, but proper configuration is essential. Most jurisdictions require permits and inspections for solar installations, regardless of who performs the work. If you lack electrical experience, hire a licensed electrician for safety-critical components. Incorrect installation can create the very hazards these systems are designed to prevent. Explore our comprehensive services for professional installation support. The Department of Energy's homeowner guide covers installation best practices and incentive programs.
How often should I test my solar system's safety protections?
Test your rapid shutdown system at least annually by activating the initiator switch and verifying the system de-energizes properly. Many inverters with AFCI and GFDI protection include self-testing features that run automatically. Check your inverter's monitoring system for fault alerts or warnings. Additionally, conduct a visual inspection quarterly - look for damaged wiring, loose connections, or corrosion that could compromise safety systems. After severe weather events, perform immediate checks. Keep a maintenance log documenting all tests and inspections. If any safety device trips repeatedly or fails testing, contact a qualified solar technician immediately. The EPA's Green Power Markets program and ENERGY STAR provide maintenance checklists for renewable energy systems. For ongoing support, visit Solar Permit Solutions for expert guidance.
