A solar combiner box is an electrical enclosure that consolidates multiple solar panel strings into a single power source before connecting to the inverter. You need a combiner box when your photovoltaic system has more than three strings, systems with three or fewer strings can connect directly to the inverter without one.
Key facts about solar combiner boxes:
Main types include standard combiner boxes (DC consolidation), disconnect combiner boxes (emergency shutdown), AFCI combiner boxes (arc fault protection for fire safety), and AC combiner boxes (for inverter aggregation in large systems).
This guide explains how solar combiner boxes work, when they're necessary, which type suits your installation, and proper safety protocols for optimal photovoltaic system performance.

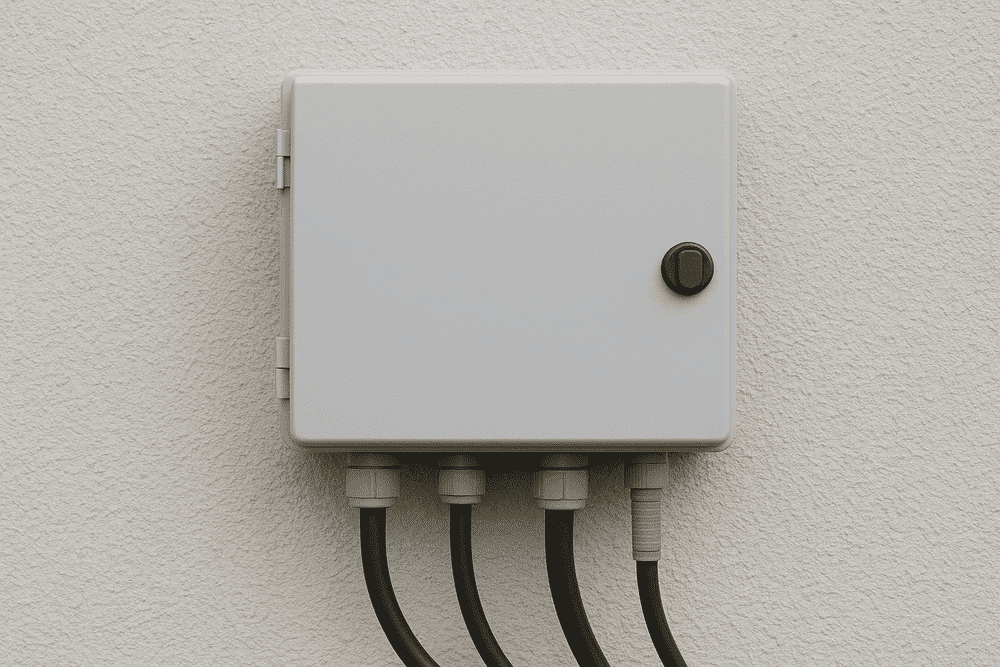

A solar combiner box is an electrical junction enclosure designed to consolidate, protect, and arrange multiple solar panel strings. Its core function involves gathering several solar strings and merging them into one unified power source that feeds directly into the inverter. Solar strings consist of solar panels wired together in a series configuration. Strategic placement of the combiner box within your residential solar design or commercial photovoltaic system plays a crucial role in minimizing power losses.
Installation of combiner boxes becomes necessary when your solar array includes more than three strings requiring inverter connection. For smaller setups with three strings or fewer, direct inverter connections work without requiring intermediate devices. Large-scale utility photovoltaic installations gain significant advantages from combiner boxes by enabling system designers to cut down on materials and installation expenses through consolidated wiring, all while maintaining optimal energy production. According to the International Energy Agency's renewable energy outlook, streamlined installation practices continue driving down solar deployment costs globally.
Properly installed, high-quality combiner boxes demand minimal upkeep. Your chosen unit must satisfy your project's technical specifications and adhere to UL1741 certification, the industry-standard requirement for this equipment category. Even though maintenance needs are typically low, conducting regular inspections remains advisable to verify proper operation. Inferior or defective combiner boxes present serious risks, including potential fire hazards that could severely damage your entire PV installation. Critical safety note: DC and AC components within solar combiner setups must remain physically separated to ensure safety compliance with electrical codes such as NEC 690 requirements in the United States.
Solar combiner boxes serve as vital components in expansive photovoltaic installations, linking numerous solar strings to a singular inverter unit. The primary role involves housing input overcurrent protection fuse assemblies designed for multi-string solar configurations. Built-in Surge Protection Devices (SPDs) safeguard against excessive electrical flow reaching the inverter by activating shutdown mechanisms when voltage spikes occur.
These enclosures accommodate either AC or DC string configurations, but never simultaneously in one unit. Maintaining separation between AC and DC components is mandatory for both safety protocols and regulatory compliance. AC string combiner boxes incorporate grid-form contact arc extinguishing architecture, whereas DC string variants utilize magnetic blowing systems for arc suppression. This design differentiation guarantees secure and optimal solar array performance, as detailed in NREL's photovoltaic research.
Similar to standard junction boxes, solar combiner boxes function as electrical housings that unite multiple cables and wiring through designated entry ports. Though compact in size and simple in construction, these devices deliver substantial operational benefits by centralizing all electrical connections. They minimize the quantity of connections at fuse terminals, streamlining installation processes and simplifying maintenance tasks, allowing technicians to quickly trace and identify individual wires. Understanding these electrical fundamentals proves essential for successful solar project implementation.
Large-scale photovoltaic arrays require meticulous organization to enable rapid installation and maintenance while preventing energy losses. Combiner boxes provide cost-effective solutions for linking solar strings to inverters. Eliminating combiner boxes forces engineers to route multiple strings directly to the inverter, creating tangled, disorganized, and hazardous wiring situations. Professional solar design services incorporate proper combiner box planning to ensure code compliance and system efficiency.
Beyond organization, combiner boxes regulate power flow into the inverter, preventing electrical overload. During voltage surge events, these units enable immediate system shutdown, functioning as emergency remote disconnect switches. This protective capability translates to financial savings by minimizing maintenance requirements and protecting inverters from costly damage. For homeowners exploring renewable energy, federal solar tax credits can offset initial installation investments significantly.
Solar combiner boxes are available in multiple configurations, each engineered to meet distinct photovoltaic system demands. Identifying these variations enables you to select the optimal solution for your installation:
Standard Combiner Boxes: The most widely deployed variant, these units consolidate multiple DC inputs from solar arrays into one unified output channel. They excel in conventional solar setups where straightforward design and performance efficiency take priority.
Disconnect Combiner Boxes: These models integrate supplementary disconnect functionality, enabling solar array isolation at a centralized point. This built-in feature enhances safety protocols by facilitating rapid system shutdowns during emergency situations or scheduled maintenance operations.
AFCI Combiner Boxes: Arc Fault Circuit Interrupter (AFCI) equipped boxes actively monitor for arc fault signals and halt circuit operation before faults escalate into fire hazards or short circuits. These units prove ideal for installations prioritizing fire prevention measures. Certain regions mandate AFCI combiner boxes under local electrical codes, a requirement more commonly applied to residential projects rather than commercial-scale solar facilities. The Green Building Advisor provides extensive guidance on fire safety considerations for residential installations.
AC Combiner Boxes: Featuring integrated AC Molded Case Circuit Breakers (MCCB) for alternating current input, these enclosures typically serve applications requiring AC circuit aggregation from multiple inverters in large-scale systems. They incorporate Type 2 AC Surge Protection Devices (SPD) to shield inverters from overvoltage events, making them the preferred choice for installations demanding comprehensive AC-side protection. Understanding supply-side connections helps determine whether AC combiner boxes suit your system architecture.
Choosing the correct combiner box type directly impacts your solar installation's safety standards, operational efficiency, and long-term reliability.
Safety stands as the cornerstone of photovoltaic system installations, with combiner boxes serving critical protective functions for the entire setup. The IEEE Power & Energy Society establishes technical standards that guide safe solar equipment deployment. Implement these essential safety measures:
Surge Protection: Verify that your combiner box incorporates Surge Protection Devices (SPDs) to defend against power surges and lightning strike damage. This safeguarding mechanism prevents harm to solar panels and associated electrical components.
Overcurrent Protection: Your combiner box must contain overcurrent protection mechanisms, including fuses or circuit breakers, to block electrical overloads that risk fire ignition. These protective devices cut electricity flow when current levels surpass safe operational thresholds.
DC Isolation: Combiner boxes require DC isolation capabilities to eliminate electrical shock hazards and enable secure maintenance procedures. This feature permits safe disconnection of DC circuits during repair work or system inspections.
Quality Control: Select combiner boxes exclusively from established manufacturers and confirm compliance with industry standards and regulatory requirements. Premium-quality units demonstrate superior reliability and deliver consistent protection for your photovoltaic installation.
Prioritizing these safety features ensures your solar panel system maintains safe, efficient operation throughout its lifespan. The American Solar Energy Society offers additional resources on solar safety best practices.
Correct installation procedures and ongoing maintenance practices prove critical for safe, efficient solar panel system operation. Professional solar permitting processes ensure installations meet all safety requirements before system activation. Focus on these key implementation factors:
Installation Time: Position combiner boxes using methods that streamline installation duration and minimize error potential. Strategic installation approaches reduce labor expenses and accelerate project completion. For DIY enthusiasts, our guide on building home solar power systems provides foundational knowledge, though professional installation remains recommended for combiner box integration.
Wiring: Accurate wiring practices prevent electrical shock hazards and guarantee safe system function. Secure all connections firmly and adhere strictly to manufacturer specifications to eliminate safety risks. Proper three-line diagram documentation ensures clear communication between installers and inspectors.
Breakers: Confirm your combiner box contains breakers matching your solar panel system's requirements and meeting industry certification standards. Correctly rated breakers shield your system against overcurrent conditions and short circuit events.
String Monitoring: Combiner boxes featuring string monitoring capabilities enable real-time performance tracking of individual strings. This monitoring function facilitates rapid issue identification and maintains your solar array at maximum efficiency levels. The ENERGY STAR program provides resources on optimizing home energy systems for peak performance.
Maintenance: Consistent maintenance routines keep combiner boxes and complete solar installations operating safely and effectively. Scheduled inspections detect and resolve emerging issues before they escalate into significant system failures. Understanding typical solar permit timelines helps you plan maintenance schedules around inspection requirements.
Implementing these installation and maintenance protocols ensures your solar panel system delivers long-term reliability and sustained safety performance.
Strategic combiner box positioning directly reduces energy losses in your photovoltaic system. Advanced solar design software analyzes which structures should share a combiner box, then determines the optimal structure placement to minimize wire lengths connecting to the inverter. After identifying the best-positioned structure, the system places the string box at the edge of the most centrally located structure within its cluster.
Modern PV design platforms evaluate combiner box configurations and implement cable length reduction strategies at every installation stage to maximize plant output. These intelligent optimization tools help engineers achieve superior cabling topology while reducing material costs and energy losses. For off-grid solar system design, proper combiner box placement becomes even more critical for minimizing voltage drop across extended cable runs.
Explore comprehensive cabling topology resources to learn how solar design software minimizes cable runs and enhances overall system performance in large-scale photovoltaic installations. The World Bank's energy initiatives highlight how optimized system design reduces renewable energy costs in developing markets.
Solar combiner boxes represent essential infrastructure components for photovoltaic systems with multiple string configurations. These electrical enclosures deliver critical benefits, including simplified wiring management, enhanced safety protocols, and substantial cost reductions across installation and maintenance phases. Understanding when combiner boxes become necessary; typically for systems exceeding three strings; empowers solar professionals and property owners to make informed design decisions that optimize system performance.
The right combiner box selection hinges on multiple factors: your installation scale, string count, protection requirements, and applicable electrical codes. Whether you choose standard, disconnect, AFCI, or AC variants, prioritizing quality construction and proper certification ensures your photovoltaic system operates reliably for decades. Strategic placement using modern design software further maximizes efficiency by minimizing cable runs and energy losses.
As solar technology continues advancing, combiner boxes remain fundamental to safe, efficient, and cost-effective photovoltaic installations. Investing time in proper selection, professional installation, and regular maintenance protects your solar investment while ensuring maximum energy production and system longevity. For comprehensive support throughout your solar journey, explore our solar permit solutions and permit expediting services. The EPA's green power market resources provide additional guidance on evaluating renewable energy investments.
How many solar strings require a combiner box?
Combiner boxes become necessary when your photovoltaic system includes more than three strings connecting to the inverter. Systems with three or fewer strings can typically connect directly to the inverter without intermediate combining equipment. Large commercial and utility-scale installations with dozens of strings require combiner boxes to consolidate connections safely and efficiently while reducing installation complexity and material costs.
Can I use one combiner box for both AC and DC solar strings?
No, you cannot combine AC and DC strings in a single combiner box. Safety regulations and electrical codes mandate complete separation between AC and DC components. AC combiner boxes feature different internal architecture, including grid-form contact arc extinguishing structures, while DC variants utilize magnetic blowing systems. Mixing these configurations in one enclosure creates serious safety hazards and violates compliance standards like NEC 690 in the United States. Understanding solar interconnection methods clarifies why AC and DC separation remains critical.
What maintenance does a solar combiner box require?
High-quality, properly installed combiner boxes demand minimal maintenance. Conduct visual inspections every 6-12 months to check for physical damage, loose connections, or signs of overheating. Verify that circuit breakers and fuses function correctly, and confirm surge protection devices remain operational (many feature indicator windows). Check for moisture intrusion in outdoor installations and ensure all wire connections stay tight. Address any issues immediately, as faulty combiner boxes pose fire risks and can damage your entire solar system.
Do residential solar systems need combiner boxes?
Most residential solar installations do not require combiner boxes because they typically contain three or fewer strings that connect directly to the inverter. However, larger residential properties with extensive roof space or ground-mounted arrays exceeding three strings benefit from combiner boxes. Additionally, even smaller residential systems may incorporate combiner boxes to gain advantages like centralized disconnect capabilities, enhanced surge protection, and simplified troubleshooting, especially in areas where AFCI combiner boxes meet local fire safety code requirements.
What certifications should I look for when purchasing a combiner box?
Ensure your combiner box carries UL1741 certification, the industry standard for inverters, converters, controllers, and interconnection system equipment used in photovoltaic applications. Verify compliance with relevant National Electrical Code (NEC) standards, particularly NEC 690 for solar photovoltaic systems in the United States. Check that the enclosure meets appropriate NEMA ratings for your installation environment (outdoor units typically require NEMA 3R or higher). International installations should confirm compliance with local electrical standards and safety certifications applicable to your jurisdiction. For questions about specific requirements, visit our contact page or explore our solar installation blog for detailed guidance.
